AC Servo Motor Distributor
As a professional AC Servo Motor Distributor, we offer a comprehensive range of high-performance servo solutions including the RSDA, RSNA, and RSM series to meet diverse industrial automation needs. Built on optimized SMD magnetic circuit design and high magnetic-density stator and rotor materials, our servo motors deliver high torque density, strong peak torque, low noise, low temperature rise, and excellent energy efficiency. The RSDA series features an ultra-short body design with an optional permanent-magnet brake, making it ideal for space-constrained and Z-axis applications. The RSNA series supports multiple encoder options—optical, magnetic, and multi-turn absolute—ensuring precise feedback and flexible system integration. For medium to high-power applications, the RSM series (110/130 mm flange) provides robust output from 1.2 kW to 1.8 kW with reliable and precise motion control. Together, these servo motor series reflect our commitment to high efficiency, precision, and long-term operational reliability in modern automation systems.
Different AC Servo Motor

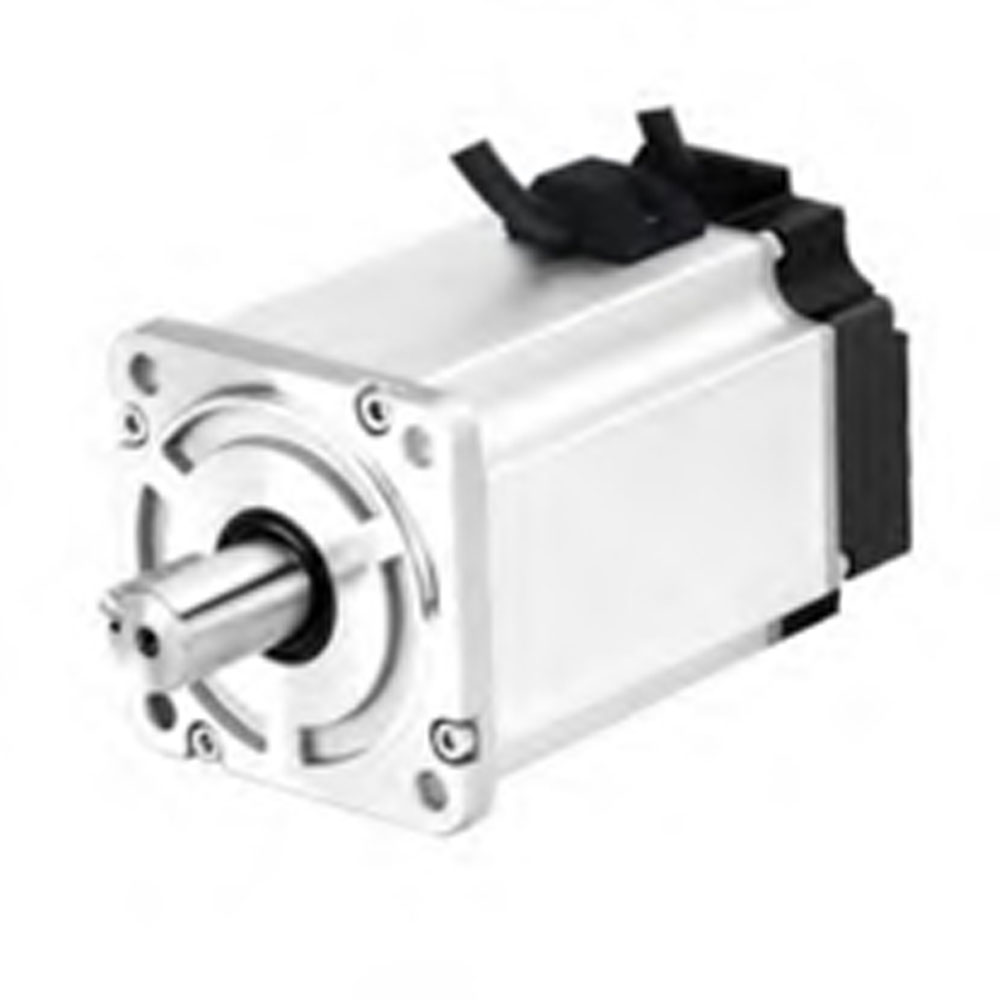

RSDA Series AC Servo Motor
These AC servo motors feature an optimized magnetic circuit design based on SMD technology and use rare-earth neodymium-iron-boron permanent magnet rotors to deliver high torque density, strong peak torque, low noise, reduced temperature rise, and lower current consumption. The RSDA series is built with an ultra-short body to save installation space. An optional permanent-magnet brake offers quick, sensitive response, making it ideal for Z-axis applications.
- Rated voltage: 220VAC
- Rated power range: 100W to 1kW
- Frame sizes: 60mm / 80mm
- Encoder options: 17-bit magnetic / 23-bit optical absolute encoder
- Designed for low noise and minimal temperature rise
- Supports overload capacity up to 3×
Naming Rule
RSNA
1
M
2
06
3
J
4
13
5
30
6
A
7
-
Z
8
- Product series
- Motor interia code
S: Small inertia
M: Medium inertia
H: large inertia - Motor flange size
06: 60mm 13: 130mm - Encoder resolution
J: 17 bits magnetic programmed single figure absolute value
G: 17 bits magnetic programmed multi-turn absolute value
L: 23 bit optical multi-turn absolute value - Motor rated torque
13: 1.3N.M 150: 15N.M - Motor rated speed
30: 3000rpm - Output mode
A: Wire type C: Connector type - Brake code
Z: With brake
*Model naming rules are only used for model meaning
analysis.
For
specific
optional models, please refer to the details page.
AC Servo Motor Model below Frame Size 80(mm)
| Motor | RSDA-H06J0630C V3.0 | RSDA-H06J1330C V3.0 | RSDA-H08J2430C V3.0 | RSDA-H08J3230C V3.0 |
|---|---|---|---|---|
| Rated power (W) | 200 | 400 | 750 | 1000 |
| Rated voltage (V) | 220 | 220 | 220 | 220 |
| Rated current (A) | 1.9 | 2.5 | 4.9 | 5 |
| Rated torque (N.M) | 0.64 | 1.27 | 2.39 | 3.2 |
| Maximum torque (N.M) | 1.28 | 2.54 | 4.78 | 6.4 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 5000 | 5000 | 5000 | 4000 |
| Back EMF (V/Krpm) | 23.5 | 38.5 | 34 | 45 |
| Torque constant (N.M/A) | 0.33 | 0.5 | 0.49 | 0.65 |
| Wire resistance (Ω,20℃) | 8.4 | 6.5 | 1.7 | 1.5 |
| Wire inductance (mH,20℃) | 15 | 14.6 | 8.2 | 5.5 |
| Rotational inertia (×10⁻⁴ kg·m²) | 0.2 Brake 0.25 |
0.5 Brake 0.6 |
1.5 Brake 1.7 |
1.9 Brake 2.1 |
| Length L (mm) | 70.5 Brake 100.5 |
89 Brake 119 |
97 Brake 135 |
109 Brake 147 |
Torque-Speed Curve
RSNA Series AC Servo Motor
Rtelligent RSN series AC servo motors, based on Smd optimized magnetic circuit design, use high magnetic density stator and rotor materials, and have high energy efficiency.
Multiple types of encoders are available, including optical, magnetic, and multi-turn absolute encoder.
- RSNA60/80 motors have more compact size, saving installation cost.
- Permanent magnet brake is optional, moves flexible, suit for Z -axis applications.
- Brake optional or Bake for option
- Multi type of encoder available.
- IP65/IP66 Optional or IP65/66 for option.
RSNA Series Servo Motor
| Motor | RS□A-M 04J0130A |
RS□A-M 04J0330A |
RSNA-M 06J0630A |
RSNA-M 06J1330A |
RSNA-M 08J2430A |
RSNA-M 08J3230A |
|---|---|---|---|---|---|---|
| Rated power (W) | 50 | 100 | 200 | 400 | 750 | 1000 |
| Rated voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated current (A) | 1.1 | 1.1 | 1.9 | 2.3 | 4.2 | 5.6 |
| Rated torque (N·m) | 0.16 | 0.32 | 0.64 | 1.27 | 2.39 | 3.20 |
| Maximum torque (N·m) | 0.48 | 0.96 | 1.92 | 3.81 | 7.17 | 9.60 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 6500 | 6500 | 6000 | 6000 | 6000 | 6000 |
| Back EMF (V/Krpm) | 10.5 | 18.8 | 26.6 | 37.0 | 35.7 | 34.6 |
| Torque constant (N·m/A) | 0.14 | 0.29 | 0.33 | 0.55 | 0.57 | 0.57 |
| Wire resistance (Ω,20℃) | 14.30 | 14.90 | 10.72 | 6.60 | 2.03 | 1.26 |
| Wire inductance (mH,20℃) | 14.80 | 14.80 | 21.04 | 20.56 | 10.20 | 6.86 |
| Rotational inertia (×10⁻⁴ kg·m²) | 0.036 | 0.079 | 0.26 | 0.61 | 1.71 | 2.11 |
| Weight (kg) | 0.35 | 0.46 Brake 0.66 |
0.84 Brake 1.21 |
1.19 Brake 1.56 |
2.27 Brake 3.05 |
2.95 Brake 3.73 |
| Length L (mm) | 61.5 | 81.5 Brake 110 |
80 Brake 109 |
98 Brake 127 |
107 Brake 144 |
127 Brake 163 |
*The encoder comes standard with 17bit magnetic encoding, 23bit optical encoding is optional, and multi-turn absolute value specifications are available.
Torque-Speed Curve
RSM Series Servo Motor
RTELLIGENT RSM Series ( flange size 110/ 130 mm) AC Servo Motors are designed for high-performance industrial automation applications. With an optimized magnetic circuit design (SMD) and high magnetic-density stator/rotor materials, they deliver superior energy efficiency, precise control, and reliable operation in a wide range of motion control scenarios.
These motors are distinguished by their high torque density, high peak torque capability, low noise operation, low temperature rise, available in a power range from 1.2KW to 1.8KW, they provide robust performance for medium to high-power automation systems.
Naming Rule
RSM
1 M
2 110
3 G
4 40
5 30
6 A
7-
Z
8
- Product series
- Motor inertia code
S: Small inertia
M: Medium inertia
H: Large inertia - Motor flange size
11: 110 mm
13: 130 mm - Encoder code
G: 17 bits magnetic programmed multi-turn absolute value
L: 23-bit optical multi-turn absolute value - Motor rated torque
40: 4.0 N·m
150: 15 N·m - Motor rated speed
30: 3000 rpm - Output mode
A: Wire type
C: Connector type - Brake code
Z: With brake
RSM Series Servo Motor
| Motor | RS□-M11J4030A | RS□-M11J5030A | RS□-M11J6030A |
|---|---|---|---|
| Rated power (kW) | 1.2 | 1.5 | 1.8 |
| Rated voltage (V) | 220 | 220 | 220 |
| Rated current (A) | 5.0 | 6.0 | 7.0 |
| Rated torque (N·m) | 4.0 | 5.0 | 6.0 |
| Maximum torque (N·m) | 12 | 15 | 18 |
| Motor pole pair | 4 | 4 | 4 |
| Encoder specification | 17bit | 17bit | 17bit |
| Rated speed (rpm) | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 3500 | 3500 | 3500 |
| Reverse potential (V/Krpm) | 56.5 | 58 | 56.5 |
| Line resistance (Ω,20℃) | 1.5 | 1.0 | 0.8 |
| Line inductance (mH,20℃) | 6.9 | 5.0 | 3.9 |
| Rotational inertia (×10⁻⁴ kg·m²) | 7.8 | 9.2 | 10.8 |
| Weight (kg) | 5.2 | 6.0 Brake 7.3 |
6.7 Brake 8.0 |
| Length L (mm) | 189 | 204 Brake 279 |
219 Brake 294 |
*The encoder comes standard with 17bit magnetic encoding, 23bit optical encoding is optional, and multi-turn absolute value specifications are available.
Torque-Speed Curve
